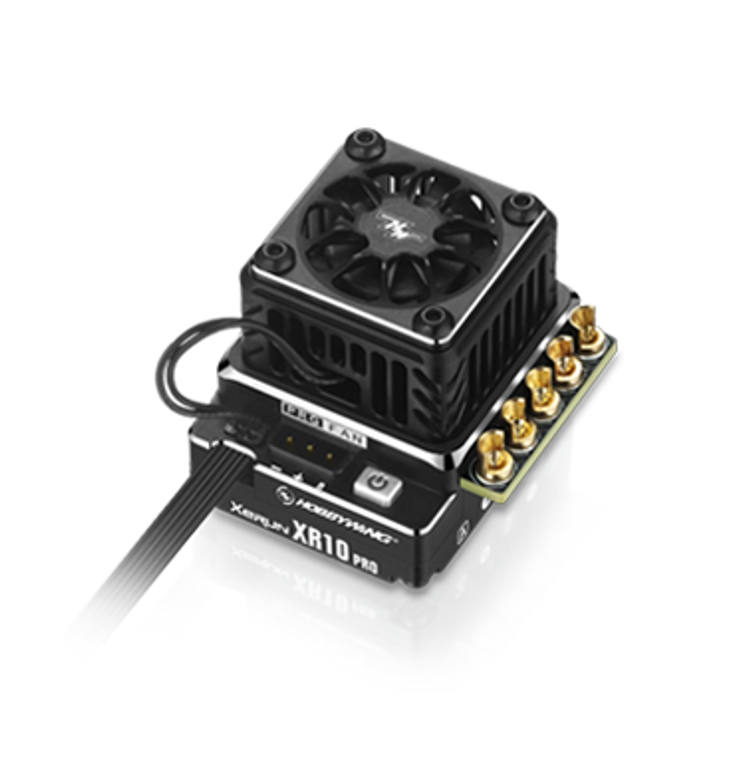

XERUN XR10 PRO GS2 (2S) STEALTH
HobbyWing
$199.99
(No reviews yet)
Write a Review
HobbyWing
XERUN XR10 PRO GS2 (2S) STEALTH
32-bit M4 Microprocessor for Top Racing
High-performance 32-bit M4 microprocessor greatly improves processing capability----make the
more complicated and precise data operation possible, that allows the ESC to have a very rapid
response and a remarkable potential to optimize and extend its functions. Hardware for professional
racing combined with powerful software turns the ESC into a “sharp weapon” for top racing.
32-bit M4 Microprocessor
for Top Racing
Reverse Polarity Protected
The XeRun XR10 PRO G2S is reverse polarity protected. In an event when a user makes a
mistake by reversing the polarity, the ESC will not be broken.
Note: The standard capacitor included in the ESC will be damaged when the polarity is
reversed. By selecting the optional non-polarity capacitors (Item number: 30840004,
30840005), it will be able to prevent any sort of damages from happening.
Reverse Polarity Protected
ESC
Built-in battery-reversal
protection circuitry frees you
from worrying about damage
caused by reverse installation.
BATT

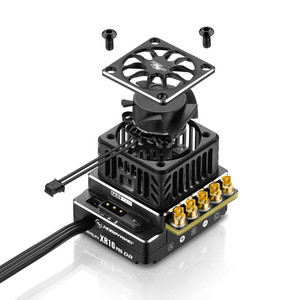

Frameless fan design
The frameless fan design is a patented technology. The
rapid transmission of internal heat to the integrated housing
radiator are made up of high airflow from the side of the fan
and a copper thermal conduction sink on the internal power
plate. These are built into high-reliability thermal systems to
ensure that it is always in good thermal condition.
Patent PCT/CN2021/115679
Frameless fan design
Durable frameless fan
The all-new frameless fan blades uses a special material and
are extremely hard and reliable. It greatly reduces the damage
of the fan blades caused by the impact of small stones, sand
and other foreign objects. Thus, reduces the failure rate of the
fan than compared with the traditional pbt fan.
Note: The elite version is equipped with an ordinary fan.
Durable frameless fan
New communication protocol for quick
setup of parameters, firmware upgrades
The new communication protocol is used to set parameters and significantly
increase the speed of firmware upgrades, and the LCD G2 is twice as fast as
the OTA Programmer speed is 3-4 times faster.
Quick setup of
parameters
Firmware
upgrades
Precisely adjustable throttle and
brake PWM frequencies
The Throttle and Brake PWM Frequency support the ability to customize the
frequency of each throttle segments. For example, the variables on the frequency are
fully adjustable for precise control to meet the requirements of different driver needs.
Fine-tunable PWM (Drive)
& Brake Frequencies
Optimized programmable parameters
Parameter are optimized for top-level competition applications, including new AC
line switching, initial start-up force adjustment, drag acceleration adjustment, etc.
Note! Use appropriate settings provided by the factory or team drivers. Check
operating temperature in order to maximize your electronics. The wrong settings
may damage the ESC/motor!
Optimized
programmable
parameters
Extended Range of Max. Brake Force
(Extra Brake: 101%-150%)
Extra brake provides the bigger brake force than standard brakes. Even if it’s applied
in the Stock/Blinky class by vehicles with a very small gear ration/FDR, it can still
guarantee sufficient brake force.
Extended Range of
Max. Brake Force
New drag acceleration adjustment
This parameter is used to control the speed of the drag-brake response. Setting a suitable value can improve the drag
braking effect of the vehicle, thus, improving drivability to suit each user.
The value can be adjusted up to 20 levels. Increasing the value will result in a greater drag brake effect.
New drag acceleration
adjustment
Super Internal BEC
Built-in switch mode BEC with a maximum output of 10A and voltage
adjustable from 5V to 7.4V (step:0.1V) for usage with high voltage servos.
Super Internal BEC
Softening Function (*Hobbywing’s Patented Technology)
Softening function implemented by this ESC allows users to fine-tune the bottom end and
maximum the control feel of vehicles in Modified class of high speed racing.
Softening Function
Seamless connectivity with OTA
module box and mobile phone
Simple and convenient, parameter settings, firmware upgrading and
other operations can be established using Hobbywing’s OTA
Bluetooth module and your mobile phone via the Hobbywing app.
Seamless connectivity
with OTA module box
and mobile phone
Real-time data log makes it easy to
access operating status
After connecting the OTA module box, turn on real-time data recording
function to access the operating status.
Note: Bluetooth transmission distance is most effective within the 5m radius.
Data-logging
Function
